ROUND BARS

Stainless Steel Bar: ASTM A-479, A 182 F 304/304H/304L, 316/316L/316Ti, 309, 310, 317L, 321, 347, 409, 410, 420, 430, 440 (A, B, C) 446, 904L, etc. SUPER 13 CR, 420 MOD, TOUGHMET ЗАТ 110

Duplex Steel Bar: A 182 F51, F53, F55

Carbon Steel Bar: A 105, LF2, 4140 MOD, 4340 MOD

Alloy Steel Bar: ASTM A -182 F11, F12, F22, FF5, F9, F91

Cu-Ni Bar: C70660 (90:10) C71500 (70:30), C71640

Nickel Bar : UNS N02200, N02201

Monel Bar : UNS N04400, N05500

Inconel Bar:UNS N06600, N06601, N06625, N08800, N08810, UNS N08825, UNSN09925, UNS N07718

Types: Round, Square, Hex (A/F), Rectangle

ANGLE / CHANNEL / FLAT BAR

Stainless Steel : 304/304L, 316/316L/316Ti, 321, 310/310S, 317/317L, 347, 17-4Ph, 15-5Ph, 904L, 410, 420, 430, 431, 430F, 416, 440C etc.

Copper, Brass, Aluminium, Hast Alloy, Titanium, Monel, Inconel, Nickel, etc.

Duplex Steel : UNS 31803, UNS32205, UNS 32750, UNS 32760

Carbon Steel Bar : A 105, LF2, 4140 MOD, 4340 MOD

Alloy Steel : F5, F9, F11, F22, F91. Carbon Steel, Mild Steel, (EN Series)

Specification : ASTM, AISI, ASME, DIN, UNS etc.

Size

Sizes of Angles : 20mm to 150mm, in Thk = 3mm to 12mm

Sizes of Channels : 20mm to 500mm, in Thk = 3mm to 50mm

FLANGES

Stainless Steel : ASTM A182 F304/ 304L/ 304H/316/316L/317/ 317L/321/310/347/904L etc.

Carbon Steel : ASTM A105/A694 F42/46/52/56/60/65/70/ A350 LF2/A350LF3, etc.

Alloy Steel ::ASTMA182 F1/F5/F9/F11/F22/F91 etc.

Others :Monel, Nickel, Inconel, Hastalloy, Copper, Brass, Bronze, Titanium, Tantalum, Bismuth, Aluminium, High Speed Steel, Zinc, Lead etc.

Types :Weldneck, Slipon, Bind, Socket Weld, Lap Joint, Spectacles, Ring Joint, Oriface, Long Weldneck, Deck Flange, etc.

Class : 150#,300#,400#, 600#,900#, 1500# & 2500#.

SHEET / PLATE

Sheets

Material Grade : Stainless Steel, Nickel Alloys, Carbon Steel, Alloy Steel, Other Ferrous & Non-Ferrous Metals.

Thickness : 0.25mm & above

Width : 6mm~ 2000mm

Length :1000mm~ 1000mm

Plates

Material Grade : Stainless Steel, Nickel Alloys, Carbon Steel, Alloy Steel, Other Ferrous & Non-Ferrous Metals.

Thickness : 3mm & above

Width : 1000mm to 3200mm

Length : 2438mm/3048mm/6096mm to 13500mm

CLADDED PLATES

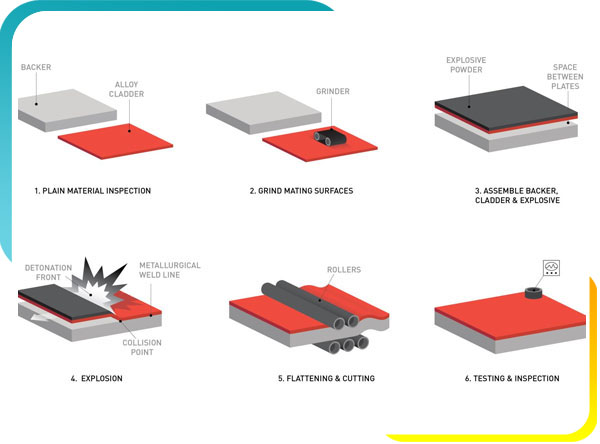

Explosion cladding is a process wherein a cladding plate is positional over the backer plate with a small gap, Specially made explosive are spread on top of the cladding plate. On detonation the cladding plate is accelerated towards the backer plate and collides with it at a high velocity. This Collision takes place progressively from one end of the plate to the other in microseconds.

This acceleration causes a unique phenomenon of progressive turbulence at the interface and removes the contaminating surface films like oxides and gases, crating a strong metallurgical bond at the collision point of the two surfaces.

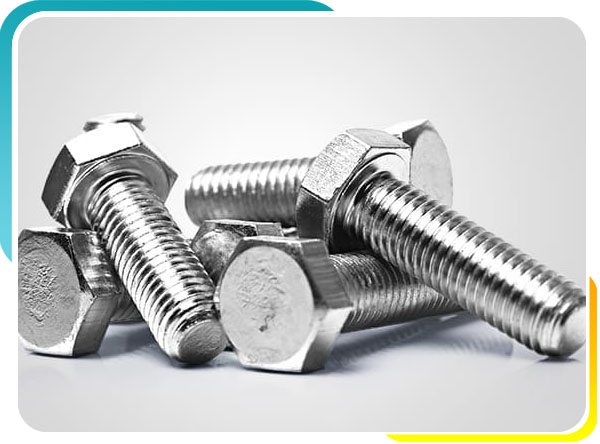

FASTENERS

Stainless Steel : AISI 302, 304, 304L, 316, 316L, 310, 317, 317L, 321, 347, 410, 420, 904L etc.

Alloy Steel : 4.6, 5.6, 6.6, 8.8, 10.9 & 12.9/'R', 'S', 'T' Conditions.

Carbon Steel : Vare Condition, Galvanized, Phosphetised, Cadium Plated, Hot Deep Galvanized, Bloodied, Nickel Chrome

Non Ferrous Metal: :Copper, Brass, Aluminium, Titanium, Nichrome, Al. Bronze Phosphorous Bronze, etc.

Types : Bolts, Nuts, Washers, Anchor Fasteners, Stud Bolts, Eye Bolt, Stud, Threaded Rod, Cotter Pin, Socket Screw, Fine Fasteners & Spares, Foundation Fasteners, etc.

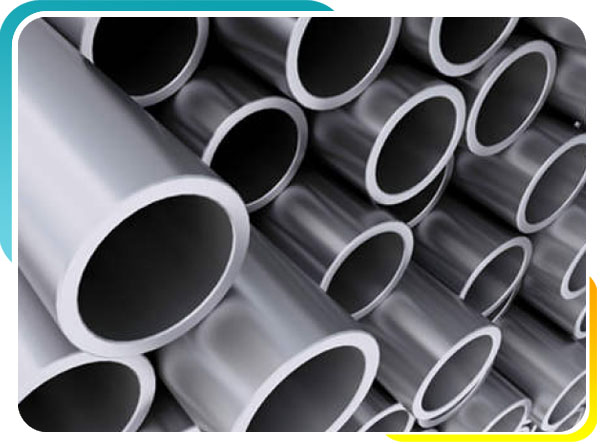

PIPES & TUBES

Material : Stainless Steel / Duplex / Super Duplex / Nickel Alloy / Carbon Steel/ Alloy Steel

Standard : ASTM/ASME /ANSI/AISI/DIN

Grade :304, 304L, 310S, 316, 316L, 321, 904L, 2205, 2507, Monel, Inconel, Hastelloy, Titanium P5, P9, P11, P12, P22, P91, etc.

Types : Seamless / Welded / U-Tubes

Types : Bolts, Nuts, Washers, Anchor Fasteners, Stud Bolts, Eye Bolt, Stud, Threaded Rod, Cotter Pin, Socket Screw, Fine Fasteners & Spares, Foundation Fasteners, etc.

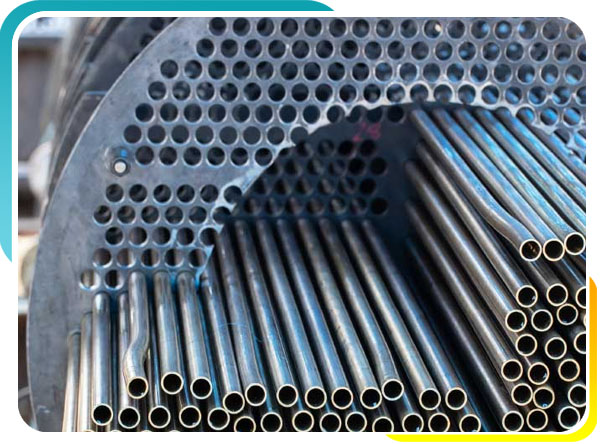

TUBE SHEET

High Nickel Alloy Tube Sheet Manufacturer,
Heat Exchanger Tube Sheet
Exporter And Supplier in India.

Materials

Carbon, Stainless, Duplex, Aluminum Bronze, Copper Alloys, Naval Brass, Copper Nickel, Pure Copper Super Duplex, Ni-Alloys, Exotic Materials, and others as sought

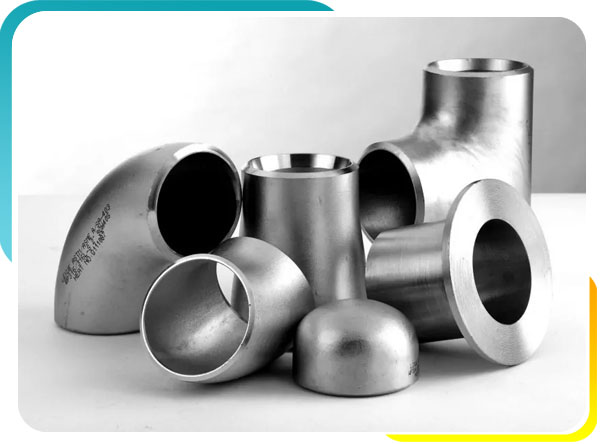

BUTTWELD FITTINGS

Stainless Steel : ASTM A403 WP 304/ 304L/ 304H/316/ 316L/ 317/ 317L/321/310/347/904L etc.

Carbon Steel : ASTM A234 WPB/ A420 WPL3/A420 WPL6/ MSS-SP-75 WPHY 42/46/52/56/60/65/70

Alloy Steel : ASTM A234 WP1/WP5/WP9/WP11/WP22/WP91 etc.

Others : Monel, Nickel, Inconel, Hastalloy, Copper, Brass, Bronze, Titanium, Tantalum, Bismuth, Aluminium, High Speed Steel, Zinc, Lead.

Types: Elbow, Tee, Reducer, Return Bends, Stub-Ends, Cap, Collar, Cross, Insert

Size: 1/4" NB TO 32" NB. (Seamless & welded)

Wall Thickness:: Sch. 5S To Sch. XXS.

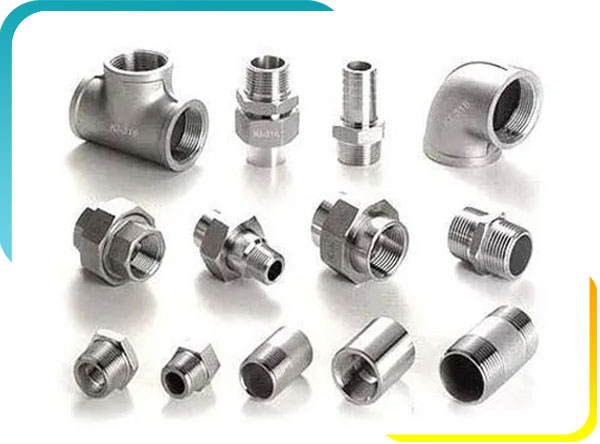

SCREWED & FORGED FITTINGS

Stainless Steel : ASTM A182 F304/304L/304H/316/316L/317/321/ 310/347/904 Letc.

Carbon Steel :ASTM A105/ A694 F42/46/52/56/60/65/70/A350 LF3/A350 LF2.

Alloy Steel : ASTM A182 F1/F5/F9/F11/F22/F91 etc.

Others : Monel, Nickel, Inconel, Hastalloy, Copper, Brass, Bronze, Titanium, Tantalum, Bismuth, Aluminium, High Speed Steel, Zinc, Lead etc.

Types : Elbow, Tee, Union, Cross, Coupling, Cap, Bushing, Plug, Swage Nipple, Welding Boss, Hexagon Nipple, Barrel Nipple, Welding Nipple, Parraler Nipple, Street Elbow, Hexagon Nut, Hose, Nipple, Bend, Adapter, Insert, Weldolet, Elbowlet,Sockolet, Threadolet, Nipolet, Letrolet etc.

Size : 1/4" NB TO 4" NB (Socketweld & Threaded)

Class : 3000#, 6000#, 9000#
